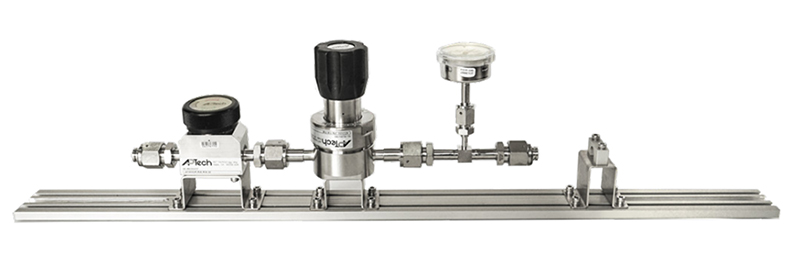

SZ series of ultra-high-purity gas stick is specially designed for ultra-high-purity gases, widely applicable to semiconductor, flat panel display, optical fiber, photovoltaics, laboratory and other industries.

Product Features:
• All gas wetted parts are made of 316L stainless steel, inner surface electropolished to 10Ra
• Use well-known brands only, such as AP Tech, WIKA, Fujikin, etc., and accessories are from premium suppliers
• Welded and assembled in a class 100 clean room
• 100% helium leak test before shipment, lower than 1x10^-9 atm cc/sec
• 24-hour nitrogen pressure decay test
• Shipped with low-pressure high-purity nitrogen for protection
• Packed in double-layer bag, vacuumed

Our Advantages:
• Cost saving design
• Saving construction time and cost
• Optimize on-site material management
• Avoid mistakes caused by immature construction environment
• Compact design for better space management


Technical Parameters:
• Maximum inlet pressure 3500psig
• Maximum outlet pressure 500psi
• Sizes from 1/4″ to 1″
• Flow up to 5000slpm
• Suitable for N2, H2, O2, Ar, He, and other non-corrosive, non-toxic gases
• Consult us for other gas applications
